Mixing valve

VRG130

  • Superb regulation for highest performance.
  • Lowest internal leakage on the market (< 0,05%).
  • Compact, flexible and easy to install.
  • Long lasting and high durability.
  • Perfect match between the valve and ESBE actuators.

Series VRG130 are 3-way valves suitable for mixing or diverting operation. The valves are made of high-performing brass allowing use in heating and cooling installations. The VRG series is available in DN15-50 and comes with different types of connections to suit most pipe dimensions. The valve is perfectly combined with ESBE actuators and controllers.

Product range

VRG131, Internal thread

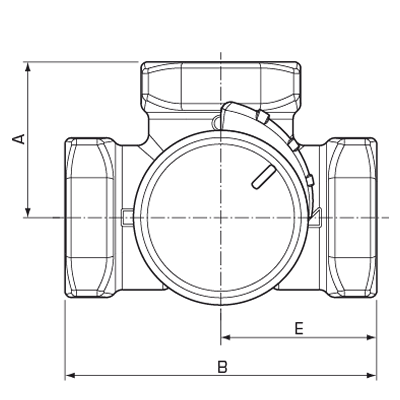

VRG130 front_B-01.png

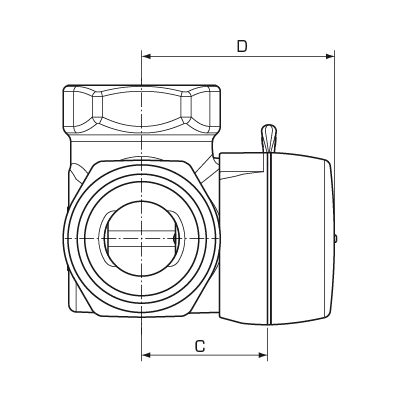

VRG130 side_A-01.png
Art.no. Reference DN Kvs Connection A [mm] B [mm] C [mm] D [mm] E [mm] Weight [kg] Replaces Note
11600100 VRG131 15 0,4 Rp ½” 36 72 32 50 36 0,40
11600200 VRG131 15 0,63 Rp ½” 36 72 32 50 36 0,40 11000200
11600300 VRG131 15 1 Rp ½” 36 72 32 50 36 0,40 11000300
11600400 VRG131 15 1,6 Rp ½” 36 72 32 50 36 0,40 11000400, 11000500
11600500 VRG131 15 2,5 Rp ½” 36 72 32 50 36 0,40 11000100
11600600 VRG131 15 4 Rp ½” 36 72 32 50 36 0,40
11600700 VRG131 20 2,5 Rp ¾” 36 72 32 50 36 0,43
11600800 VRG131 20 4 Rp ¾” 36 72 32 50 36 0,43 11000700
11600900 VRG131 20 6,3 Rp ¾” 36 72 32 50 36 0,43 11001100, 11050100
11601000 VRG131 25 6,3 Rp 1" 41 82 34 52 41 0,70 11001600
11601100 VRG131 25 10 Rp 1" 41 82 34 52 41 0,70 11002400, 11050200
11601200 VRG131 32 16 Rp 1¼” 47 94 37 55 47 0,95 11002700, 11050300
11603400 VRG131 40 25 Rp 1½” 53 106 44 62 53 1,68 11050400, 11601300
11603600 VRG131 50 40 Rp 2" 60 120 46 64 60 2,30 11050600, 11601400

VRG132, External thread

VRG130 front_B-01.png
VRG130 side_A-01.png
Art.no. Reference DN Kvs Connection A [mm] B [mm] C [mm] D [mm] E [mm] Weight [kg] Replaces Note
11601500 VRG132 15 0,4 G ¾" 36 72 32 50 36 0,40
11601600 VRG132 15 0,63 G ¾" 36 72 32 50 36 0,40
11601700 VRG132 15 1 G ¾" 36 72 32 50 36 0,40
11601800 VRG132 15 1,6 G ¾" 36 72 32 50 36 0,40
11601900 VRG132 15 2,5 G ¾" 36 72 32 50 36 0,40
11602000 VRG132 15 4 G ¾" 36 72 32 50 36 0,40
11602100 VRG132 20 2,5 G 1" 36 72 32 50 36 0,43
11602200 VRG132 20 4 G 1" 36 72 32 50 36 0,43
11602300 VRG132 20 6,3 G 1" 36 72 32 50 36 0,43 11001300
11602400 VRG132 25 6,3 G 1¼" 41 82 34 52 41 0,70
11602500 VRG132 25 10 G 1¼" 41 82 34 52 41 0,70 11002600
11602600 VRG132 32 16 G 1½" 47 94 37 55 47 0,95 11002900
11603500 VRG132 40 25 G 2" 53 106 44 62 53 1,69 11602700
11603700 VRG132 50 40 G 2¼" 60 120 46 64 60 2,30 11602800

VRG133, Compression fitting

VRG130 front_B-01.png
VRG130 side_A-01.png
Art.no. Reference DN Kvs Connection A [mm] B [mm] C [mm] D [mm] E [mm] Weight [kg] Replaces
11606000 VRG133 20 1,6 CPF 22 mm 36 72 32 50 36 0,40
11606100 VRG133 20 2,5 CPF 22 mm 36 72 32 50 36 0,40
11602900 VRG133 20 4 CPF 22 mm 36 72 32 50 36 0,40
11603000 VRG133 20 6,3 CPF 22 mm 36 72 32 50 36 0,40 11002100
11603100 VRG133 25 10 CPF 28 mm 41 82 34 52 41 0,45 11002300

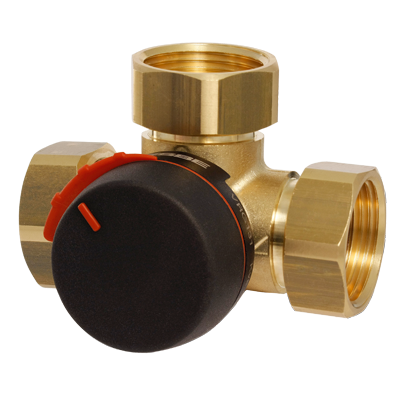

VRG138, Rotating nut and external thread

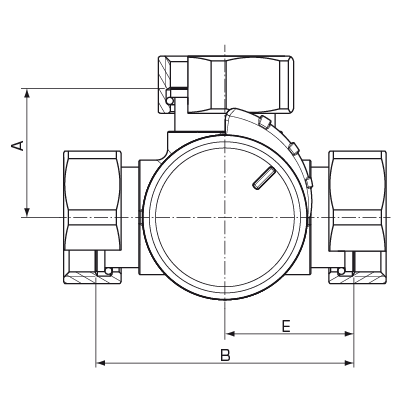

VRG138 front_B-01.png

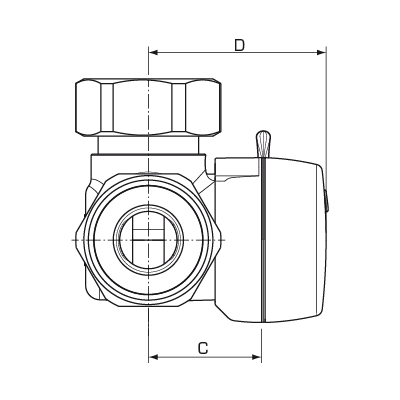

VRG138 side_A-01.png
Art.no. Reference DN Kvs Connection A [mm] B [mm] C [mm] D [mm] E [mm] Weight [kg] Replaces
11603800 VRG138 20 4 2x RN 1" + G 1" 36 72 32 50 36 0,56
11604100 VRG138 20 6,3 3x RN 1" 36 72 32 50 36 0,59 11001500
Installation support

Install ESBE 3-way valve - VRG130

How to install ARA600 actuator on VRG valve

Installation examples

Characteristic graph, VRGxx0 valves

How to set ESBE 3-way valve in 45° position/50% open (VRG)

Exchange interior kit to repair VRG & VRB - ESBE Rotary valves

Operation

Operation
The flat-sided spindle top points towards the sleeve position.

Installation examples

 Installation examples
Mixing
Diverting

Documents

Technical data

Technical data

Pressure class: PN10
Torque (at nominal pressure): DN15-32: < 3 Nm;
DN40-50: < 5 Nm
Leakrate in % of flow: Mixing: <0,05%;
Diverting: <0,02%
Working pressure: 1 MPa
max. Differential pressure drop, Mixing: 100 kPa
max. Differential pressure drop, Diverting: 200 kPa
Close off pressure: 200 kPa
Rangeability Kv/Kv min, A-AB: 100
Media, Heating water: in accordance with VDI2035
Media, Water/Glycol mixtures: max. 50 %
Media, Water/Ethanol mixtures: max. 28 %
Media temperature, max. continuosly: +110 °C
Media temperature, max. temporarily: +130 °C
Media temperature, min.: -10 °C
Connections, Internal thread (Rp): EN 10226-1
Connections, External thread (G): ISO 228/1
Connections, Compression fitting (CPF): EN 1254-2
Material, Valve body: Dezincification resistant brass, DZR
Material, Slide: Abrasion resistant brass
Material, Shaft and bushing: PPS composite
Material, O-rings: EPDM

Conformity

PED 2014/68/EU, article 4.3 /
SI 2016 No. 1105 (UK)

Valve characteristics

Valve characteristics

Dimensioning

Please see data sheet
Accessories and spare parts

Spare parts

Art No. Reference Designation Note Data sheet Instruction manual
17006900 17006900 VRG802 ESBE VRG802 Interior kit DN15/20. download download
17006910 17006910 VRG802 ESBE VRG802 Interior kit DN25. download download
17006920 17006920 VRG802 ESBE VRG802 Interior kit DN32/40. download download
17006930 17006930 VRG802 ESBE VRG802 Interior kit DN40/50. download download
17006950 17006950 VRG802 ESBE VRG802 Interior kit DN50 download download
17006940 17006940 VRG803 ESBE VRG803 Knob VRG/VRB. download download

Options

Art No. Reference Designation Note Data sheet Instruction manual
16103800 16103800 VRI111 ESBE VRI111 Insulation shell DN 15/20 for insulation of ESBE valve series VRG100, VRG200, VRG300 and VRB100. DN 15/20 download download
16103900 16103900 VRI111 ESBE VRI111 Insulation shell DN25 for insulation of ESBE valve series VRG100, VRG200, VRG300 and VRB100. DN25 download download
16104000 16104000 VRI111 ESBE VRI111 Insulation shell DN32 for insulation of ESBE valve series VRG100, VRG200, VRG300 and VRB100. DN32 download download
16104100 16104100 VRI111 ESBE VRI111 Insulation shell DN40 for insulation of ESBE valve series VRG100, VRG200, VRG300 and VRB100. DN40 download download

Connection kit KTD100

Art No. Reference Designation Note Data sheet Instruction manual
36551700 36551700 KTD112 Connection kit with external thread R ¾" for use on externally threaded valves G 1". Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. download download
36551800 36551800 KTD112 Connection kit with external thread R 1" for use on externally threaded valves G 1¼". Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. download download
36551900 36551900 KTD112 Connection kit with external thread R 1¼" for use on externally threaded valves G 1½". Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. download download
36552000 36552000 KTD112 Connection kit with external thread R 1½" for use on externally threaded valves G 2". Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. download download
36552100 36552100 KTD112 Connection kit with external thread R 2" for use on externally threaded valves G 2¼". Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. download download

Adaptor Kits

Art No. Reference Designation Note Data sheet Instruction manual
16053700 16053700 VRG804 ESBE VRG804 Adaptor kit ESBE valves series VRx without hand lever for controller 90C. Series 90C. Comes with the controller. download download
16053300 16053300 VRG801 ESBE VRG801 Adaptor kit ESBE valves series VRG, VRH, VRB, VRS, VRP. Series 90, CRA120, CRC120. Order separately. download download
16000500 16000500 ARA803 ESBE ARA803 Adaptor kit ESBE valves series VRx, MG, G, F, BIV, H, HG. Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. download download
