Controller
CRS210
- Controller dedicated for PHW applications
- Flow pipe sensor for quick reaction time
- Legionella flushing and thermal disinfection working mode
- Low noise level
- Accurate and precise control
- Possible remote control via room unit (accessory)
The Series CRS210 is constant temperature Controller with integrated actuator and a special sensor intended for ESBE Rotary valves series VRG.
The Controllers software and components has been specially designed for potable water application. Thanks to the smart relay the CRS200 can work in legionella flushing, thermic disinfection mode (alternative temperature). The Controller can be equipped with a room unit which will allow to control and plan (calendar) the legionella flushing, thermic disinfection mode.
Product range
CRS210

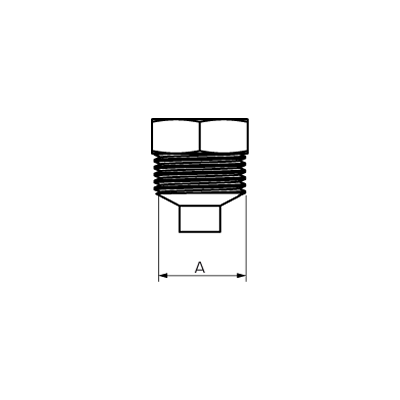

| Art.no. | Reference | Voltage [V AC] | Temperature range [°C] | Torque [Nm] | Connection A | Weight [kg] | Replaces |
| 12727100 | CRS211 | 230 | 5 ‒ 95 | 6 | R ½" | 0,7 | 12723100 |
Installation support
Change opening direction – ESBE Controllers (CRx200)
Change target temperature – ESBE Controllers (CRx200)
Change maximum/minimum flow temperature – ESBE Controllers (CRx200)
Use your room unit as a remote control - ESBE Controller CRS210
External activation of T2 – ESBE Controllers (CRx200)
Install radio module for wireless communication – ESBE Controller CRS210
Installation example
This application shows how to control the potable water temperature.
The Controller CRS210 is controlling the temperature of the potable water and will keep it constantly at the desired set level. The controller can work in systems with circulation.
In case of Legionella flushing, an alternative temperature can be released on CRS210 via relay. This can also be done via CRB912 Room unit (accessory), which has a clock function. The clock allows to plan for regular legionella flushing, e.g. every Sunday at 00:00 for 30min with T2 = 80°C, normal mode T = 50°C.
* Cable or wireless connection of room unit depending on requirements.
This application shows how to control the potable water temperature.
The CRS210 is controlling the temperature of the potable water water and keeps it constantly on the desired set level. The controller can work in systems where no circulation of potable water is provided.
In case of Legionella flushing, an alternative temperature can be released on CRS210 via relay. This can also be done via CRB912 Room unit (accessory), which has a clock function. The clock allows to plan for regular legionella flushing, e.g. every Sunday at 00:00 for 30min with T2 = 80°C, normal mode T = 50°C.
* Cable or wireless connection depending on requirements.
This application shows how to control the potable water temperature indirect.
The Controller CRS210 is controlling the temperature of the potable water by controlling the amount of heating water supplied to the plate heat exchanger. The controller can work in systems with circulation of potable water.
In case of Legionella flushing, an alternative temperature can be released on CRS210 via relay. This can also be done via CRB912 Room unit (accessory), which has a clock function. The clock allows to plan for regular legionella flushing, e.g. every Sunday at 00:00 for 30min with T2 = 80°C, normal mode T = 50°C.
* Cable or wireless connection depending on requirements.
This application shows how to control the potable water temperature indirect.
The CRS210 is controlling the temperature of the potable water water by controlling the amount of heating water supplied to a plate heat exchanger. The controller can work in systems without circulation of potable water.
In case of Legionella flushing, an alternative temperature can be released on CRS210 via relay. This can also be done via CRB912 Room unit (accessory), which has a clock function. The clock allows to plan for regular legionella flushing, e.g. every Sunday at 00:00 for 30min with T2 = 80°C, normal mode T = 50°C.
* Cable or wireless connection depending on requirements.
Documents
Technical data
Technical data
| Sensors: | Temperature sensor type NTC |
| Enclosure rating: | IP41 |
| Protection class: | II |
| Power supply: | 230 ± 10% V AC, 50 Hz |
| Power consumption: | 10 VA |
| Torque: | 6 Nm |
| ERP temperature controls class: | N/A |
| Energy efficiency contribution: | N/A |
| Running time at max. speed: | 30 s |
| Weight: | 0,7 kg |
| Supplied parts: | • Actuator with integrated controller |
| • Immersion flow temperature sensor | |
| • EU adapter 230V | |
| Ambient temperature, max.: | +50 °C |
| Ambient temperature, min.: | +5 °C |
| Temperature range, Flow temperature sensor (S1, S2): | +5 to +95 °C |
| Connection, Mounting set: | External thread (R), EN 10226-1 |
| Material, Flow temperature sensor: | Stainless steel |
| Material, Mounting set flow temperature sensor: | Dezincification resistant brass, DZR* |
| *Suitable for drinking water applications |
Conformity
EMC 2014/30/EU
RoHS3 2015/863/EU
SI 2016 No. 1091
SI 2012 No. 3032
Wiring
Accessories and spare parts
Adaptor Kits
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
16000500 | ARA803 | ESBE ARA803 Adaptor kit ESBE valves series VRx, MG, G, F, BIV, H, HG. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. |  |
|
 |
16000600 | ARA805 | ESBE ARA805 Adaptor kit Meibes valves. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
|
 |
16000700 | ARA807 | ESBE ARA807 Adaptor kit Watts valves. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
|
 |
16000800 | ARA806 | ESBE ARA806 Adaptor kit Honeywell Centra Corona valves, series V5433A, V5433G, V5442A, V5442G. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
|
 |
16000900 | ARA808 | ESBE ARA808 Adaptor kit Lovato valves. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
|
 |
16001000 | ARA809 | ESBE ARA809 Adaptor kit PAW valves. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
|
 |
16001100 | ARA810 | ESBE ARA810 Adaptor kit WITA valves Minimix, Maximix, H10, H9GG, H9MS. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
|
Options
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
16200700 | ARA801 | ESBE ARA801 Auxiliary switch kit ARA600. | |
|
|
 |
17052000 | CRS911 | ESBE CRS911 Flow pipe sensor | |
|
|
 |
17056400 | CRB916 | ESBE CRB916 Communication radio module, wireless | |
|
Spare parts
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
17055300 | CRB912 | ESBE CRB912 Room unit, cable | |
|
|
|
17055500 | CRB913 | ESBE CRB913 Room unit, wireless | |
|
|
 |
17055700 | CRB914 | ESBE CRB914 Communication cable, 20m | |
|
|
 |
17056200 | CRA915 | ESBE CRA915 UK Plug 230V-12V | |
|
|
 |
17056300 | CRA911 | ESBE CRA911 EU plug 230V-12V | |
|
Download area
Download area
| Type | Preview | Download |
| Data sheet | CRS210 |
|
| Installation instruction | CRS210 - Assembly |
|
| Installation instruction | CRS210 |
|
| Certificate | Declaration of Conformity, CRS210 |
|
| Certificate | Declaration of Conformity UKCA, CRS210 |
|
| Certificate | Building Product Declaration BPD3, CRS210 |
|
| Certificate | EAC certificate, CRS210 |
|
| Image | CRS211, high res |
|
| 2D Image | CRS210 |
|
| 3D drawing (stp file) | CRS210 |
|
