Rotary unit

VRG130 + ARA600 3-point

Valve series VRG and actuator series ARA delivered as a set in an all-in-one package. For more information about the products, please see separate product pages.
Product range

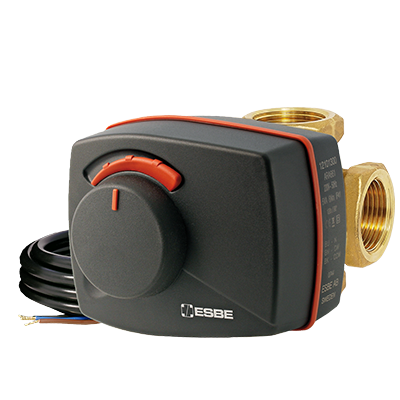

VRG131 + ARA661

Art.no. Reference Reference - mixing valve DN Kvs Connection Reference - actuator Voltage [V AC] Running time 90° [s] Torque [Nm] Note
13020600 VRG131+ARA661 VRG131 15 2,5 Rp ½" ARA661 230 120 6 11600500 + 12101300
13020700 VRG131+ARA661 VRG131 20 4 Rp ¾" ARA661 230 120 6 11600800 + 12101300
13022300 VRG131+ARA661 VRG131 20 6,3 Rp ¾" ARA661 230 120 6 11600900 + 12101300
13020800 VRG131+ARA661 VRG131 25 6,3 Rp 1" ARA661 230 120 6 11601000 + 12101300
13022400 VRG131+ARA661 VRG131 25 10 Rp 1" ARA661 230 120 6 11601100 + 12101300
Technical data

Technical data

Download area

Download area

Type Preview Download
Image VRG131 + ARA661, high res download
