Change-over/Diverting valve

VRG230

  • Superb regulation for best change over/diverting performance.
  • Compact, flexible and easy to install.
  • Long lasting and high durability.
  • Perfect match between the valve and ESBE actuators.
Series VRG230 are 3-way valves suitable for midport change-over / diverting operation. The valves are made of the high-performing brass allowing use in heating and cooling installations. The VRG series is available in DN15-50 and comes with different types of connections to suit most pipe dimensions. The valve is perfectly combined with ESBE actuators and controllers.
Product range

VRG231, Internal thread

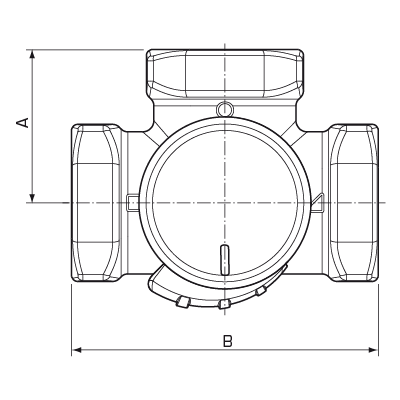

VRG230 front_A-01.png

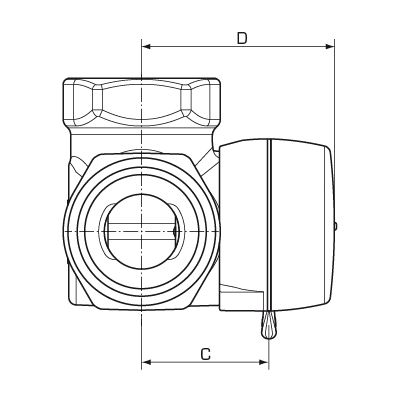

VRG230 side_A-01.png
Art.no. Reference DN Kvs Connection A [mm] B [mm] C [mm] D [mm] Weight [kg] Note Replaces
11620100 VRG231 20 6,3 Rp ¾" 36 72 32 50 0,43
11620200 VRG231 25 10 Rp 1" 41 82 34 52 0,70
11620300 VRG231 32 16 Rp 1¼" 47 94 37 55 0,95
11621400 VRG231 40 30 Rp 1½" 53 106 44 62 1,72 11620400
11621600 VRG231 50 40 Rp 2" 60 120 46 64 2,39 11620500

VRG232, External thread

VRG230 front_A-01.png
VRG230 side_A-01.png
Art.no. Reference DN Kvs Connection A [mm] B [mm] C [mm] D [mm] Weight [kg] Note Replaces
11620600 VRG232 20 6,3 G 1" 36 72 32 50 0,43
11620700 VRG232 25 10 G 1¼" 41 82 34 52 0,70
11620800 VRG232 32 16 G 1½" 47 94 37 55 0,95
11621500 VRG232 40 30 G 2" 53 106 44 62 1,73 11620900
11621700 VRG232 50 40 G 2¼" 60 120 46 64 2,39 11621000
Installation support

Install ESBE 3-way valve - VRG230

How to install ARA600 actuator on VRG valve

Installation examples

Characteristic graph, VRGxx0 valves

How to set ESBE 3-way valve in 45° position/50% open (VRG)

Exchange interior kit to repair VRG & VRB - ESBE Rotary valves

Operation

Operation
The flat-sided spindle top points towards the sleeve position.

Installation example

Installation example

Documents

Technical data

Technical data

Pressure class: PN10
Torque (at nominal pressure): DN15-32: < 3 Nm;
DN40-50: < 5 Nm
Leakrate in % of flow: <0,5
Working pressure: 1 MPa
max. Differential pressure drop, Mixing: 100 kPa
max. Differential pressure drop, Diverting: 200 kPa
Close off pressure: 200 kPa
Rangeability Kv/Kv min, A-AB: 100
Media, Heating water: in accordance with VDI2035
Media, Water/Glycol mixtures: max. 50 %
Media, Water/Ethanol mixtures: max. 28 %
Media temperature, max. (continuosly): +110 °C
Media temperature, max. (temporarily): +130 °C
Media temperature, min.: -10 °C
Connections, Internal thread (Rp): EN 10226-1
Connections, External thread (G): ISO 228/1
Material, Valve body: Dezincification resistant brass, DZR
Material, Slide: Abrasion resistant brass
Material, Shaft and bushing: PPS composite
Material, O-rings: EPDM

Conformity

PED 2014/68/EU, article 4.3 /
SI 2016 No. 1105 (UK)

Valve characteristics

Valve characteristics

Dimensioning

Please see data sheet
Accessories and spare parts

Spare parts

Art No. Reference Designation Note Data sheet Instruction manual
17006900 17006900 VRG802 ESBE VRG802 Interior kit DN15/20. download download
17006910 17006910 VRG802 ESBE VRG802 Interior kit DN25. download download
17006920 17006920 VRG802 ESBE VRG802 Interior kit DN32/40. download download
17006930 17006930 VRG802 ESBE VRG802 Interior kit DN40/50. download download
17006950 17006950 VRG802 ESBE VRG802 Interior kit DN50 download download
17006940 17006940 VRG803 ESBE VRG803 Knob VRG/VRB. download download

Options

Art No. Reference Designation Note Data sheet Instruction manual
16103800 16103800 VRI111 ESBE VRI111 Insulation shell DN 15/20 for insulation of ESBE valve series VRG100, VRG200, VRG300 and VRB100. DN 15/20 download download
16103900 16103900 VRI111 ESBE VRI111 Insulation shell DN25 for insulation of ESBE valve series VRG100, VRG200, VRG300 and VRB100. DN25 download download
16104000 16104000 VRI111 ESBE VRI111 Insulation shell DN32 for insulation of ESBE valve series VRG100, VRG200, VRG300 and VRB100. DN32 download download
16104100 16104100 VRI111 ESBE VRI111 Insulation shell DN40 for insulation of ESBE valve series VRG100, VRG200, VRG300 and VRB100. DN40 download download

Connection kit KTD100

Art No. Reference Designation Note Data sheet Instruction manual
36551700 36551700 KTD112 Connection kit with external thread R ¾" for use on externally threaded valves G 1". Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. download download
36551800 36551800 KTD112 Connection kit with external thread R 1" for use on externally threaded valves G 1¼". Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. download download
36551900 36551900 KTD112 Connection kit with external thread R 1¼" for use on externally threaded valves G 1½". Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. download download
36552000 36552000 KTD112 Connection kit with external thread R 1½" for use on externally threaded valves G 2". Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. download download
36552100 36552100 KTD112 Connection kit with external thread R 2" for use on externally threaded valves G 2¼". Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. download download

Adaptor Kits

Art No. Reference Designation Note Data sheet Instruction manual
16053700 16053700 VRG804 ESBE VRG804 Adaptor kit ESBE valves series VRx without hand lever for controller 90C. Series 90C. Comes with the controller. download download
16053300 16053300 VRG801 ESBE VRG801 Adaptor kit ESBE valves series VRG, VRH, VRB, VRS, VRP. Series 90, CRA120, CRC120. Order separately. download download
16000500 16000500 ARA803 ESBE ARA803 Adaptor kit ESBE valves series VRx, MG, G, F, BIV, H, HG. Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. download download
Download area

Download area

Type Preview Download
Data sheet VRG230 download
Installation instruction VRG230 download
Certificate Declaration of Conformity, VRG230 download
Certificate Declaration of Conformity UKCA, VRG230 download
Certificate Building Product Declaration BPD3, VRG230 download
Certificate EAC certificate (RU), VRG230 download
Certificate Certificate of conformity UA, VRG230 download
Approval PZH-certificate (PL), VRG230 download
Guide Selection guide, Rotary valves + Actuators download
Guide Selection guide, Rotary valves + Controllers download
Guide Selection guide, Heat pump and valve usage download
Image VRG231, high res download
Image VRG232, high res download
2D image VRG230 download
3D drawing (stp file) VRG231, DN20 download
3D drawing (stp file) VRG232, DN20 download
3D drawing (stp file) VRG231, DN25 download
3D drawing (stp file) VRG232, DN25 download
3D drawing (stp file) VRG231, DN32 download
3D drawing (stp file) VRG232, DN32 download
3D drawing (stp file) VRG231, DN40 download
3D drawing (stp file) VRG232, DN40 download
3D drawing (stp file) VRG231, DN50 download
3D drawing (stp file) VRG232, DN50 download
Applications

Applications

Heat pump with higher flow requirements.
