Diverting valve
VZC, VZD
- Fast change-over.
- Anti-jamming program every 7th day.
- 0-percentage leakage.
- Auxiliary switch available.
Series VZC, VZD is a range of compact diverting valves in brass for use in heat pumps, underfloor heating or HVAC applications. The main feature is the ability to rapidly change the flow direction between two circuits meaning a energy-effecient operation. The actuator series VZC has an Molex-type connector for quick cable connection to the control unit. The actuator series VZD is delivered with a fixed cable and has an enclosure rating of IP40. As an option series VZC, VZD is available with auxiliary switch.
Product range
VZC161/VZD161, Internal thread
| Art.no. | Reference | DN | Kvs | Connection | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | Cable version | Weight [kg] | Note |
| 43060200 | VZC161 | 20 | 6,0 | Rp ¾" | 70 | 42 | 99 | 70 | 58 | Detachable cable | 0,5 | Replaces 43020200 |
| 43080100 | VZD161 | 20 | 6,0 | Rp ¾" | 70 | 42 | 99 | 70 | 58 | Fixed cable | 0,5 | Replaces 43040100 |

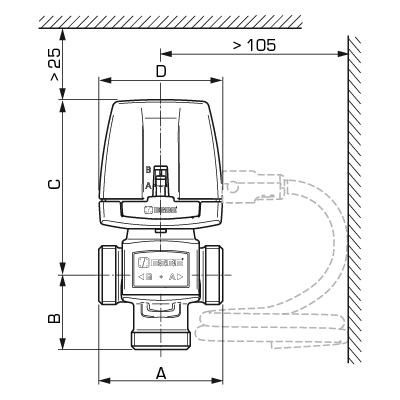

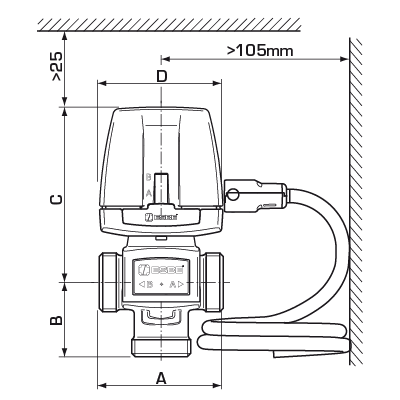

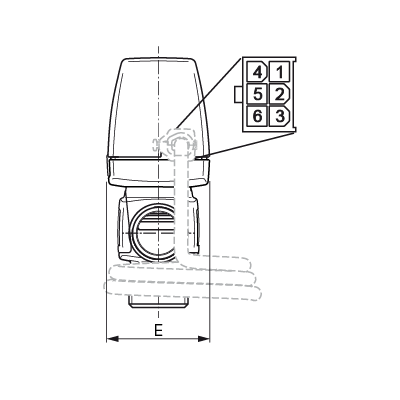

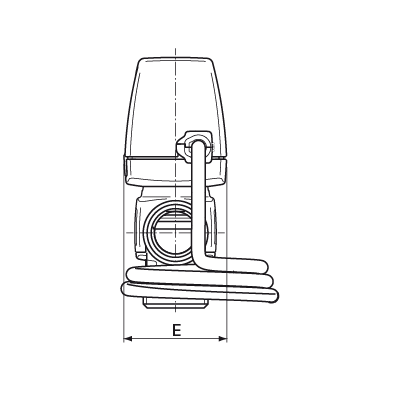

VZC162/VZD162, External thread
| Art.no. | Reference | DN | Kvs | Connection | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | Cable version | Weight [kg] | Note |
| 43060600 | VZC162 | 15 | 3,5 | G ¾" | 70 | 42 | 99 | 70 | 58 | Detachable cable | 0,5 | Replaces 43020600 |
| 43080300 | VZD162 | 15 | 3,5 | G ¾" | 70 | 42 | 99 | 70 | 58 | Fixed cable | 0,5 | Replaces 43040300 |
| 43060700 | VZC162 | 20 | 6,0 | G 1" | 70 | 42 | 99 | 70 | 58 | Without cable | 0,5 | Replaces 43020700 |
| 43060800 | VZC162 | 20 | 6,0 | G 1" | 70 | 42 | 99 | 70 | 58 | Detachable cable | 0,5 | Replaces 43020800 |
| 43080400 | VZD162 | 20 | 6,0 | G 1" | 70 | 42 | 99 | 70 | 58 | Fixed cable | 0,5 | Replaces 43040400 |

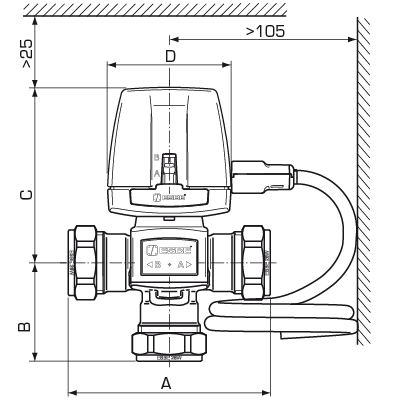

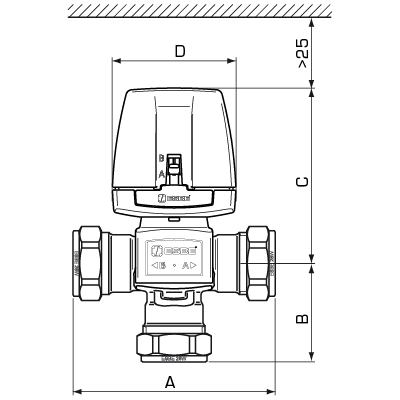

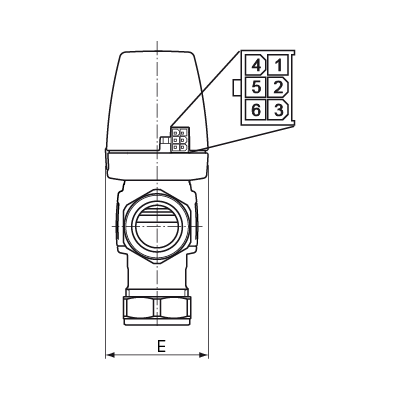

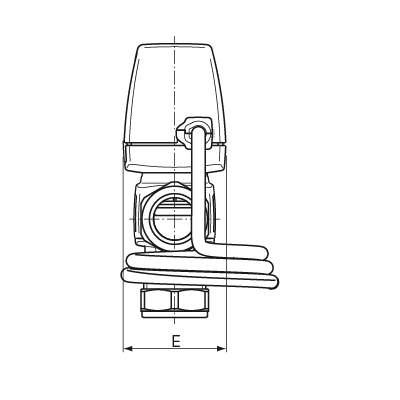

VZC263/VZD263, Compression fitting
| Art.no. | Reference | DN | Kvs | Connection | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | Cable version | Weight [kg] | Note |
| 43061400 | VZC263 | 20 | 4,5 | CPF 22 mm | 111 | 49 | 99 | 70 | 58 | Detachable cable | 0,6 | Replaces 43021400 |
| 43080700 | VZD263 | 20 | 4,5 | CPF 22 mm | 111 | 49 | 99 | 70 | 58 | Fixed cable | 0,6 | Replaces 43040700 |
| 43061600 | VZC263 | 25 | 6,0 | CPF 28 mm | 114 | 56 | 99 | 70 | 58 | Detachable cable | 0,7 | Replaces 43021600 |
| 43080800 | VZD263 | 25 | 6,0 | CPF 28 mm | 114 | 56 | 99 | 70 | 58 | Fixed cable | 0,7 | Replaces 43040800 |
Technical data
Technical data
| Pressure class: | PN 6 |
| max. Differential pressure drop, Diverting: | 80 kPa |
| max. Differential pressure drop, Mixing: | 50 kPa |
| Leakrate in % of flow: | 0 |
| Power supply: | 230 ± 10% V AC, 50 Hz |
| Power consumption: | 15 VA |
| Power consumption idle: | 0,9 VA |
| Control signal: | 2-point SPST (Singel Pole Single Throw) |
| Enclosure rating: | VZC: IP20; VZD: IP40 |
| Protection class: | II |
| Running time: | 3 s |
| Rating auxiliary switch: | 2(1)A 250 V AC |
| Cable length: | 1,6 m |
| Media temperature, max. continuosly: | +95 °C |
| Media temperature, max. temporarily: | +110 °C |
| Media temperature, min.: | +5 °C |
| Ambient temperature, max.: | +60 °C |
| Ambient temperature, min.: | 0 °C |
| Connections, Internal thread (Rp): | EN 10226-1 |
| Connections, External thread (G): | ISO 228/1 |
| Connections, Compression fitting (CPF): | EN 1254-2 |
| Material, Valve body: | Dezincification resistant brass, DZR |
| Material, Plug and cover plate: | PPS |
| Material, Spindle: | Stainless steel, SS 2346 |
| Material, O-rings: | EPDM |
Conformity
EMC 2014/30/EU
RoHS3 2015/863/EU
PED 2014/68/EU, article 4.3
Flow connection - Valve
Dimensioning
Wiring
Accessories and Spare Parts
Spare parts
| Art No. | Reference | Designation | Note | |
 |
47050400 | ALZ960 | ESBE ALZ960 Actuator 2-point, 230V IP20 | |
 |
47000100 | VZA900 | ESBE VZA900 Interior complete | |
|
47050200 | ALZ960 | ESBE ALZ960 Actuator 2-point, 230V IP40 |
Options
| Art No. | Reference | Designation | Note | |
 |
46050300 | ALZ801 | ESBE ALZ801 Cable loose version IP20, 3-wire | Compatible with art.no. 4302 XX XX and 4304 XX XX (not 4300 XX XX). |
Download area
Download area
| Type | Preview | Download |
| Data Sheet | VZC, VZD |
|
| Installation instruction | VZC, VZD |
|
| Certificate | Declaration of Conformity, VZC, VZD |
|
| Certificate | Declaration of Conformity UK CA, VZC, VZD |
|
| Certificate | Building Product Declaration BPD3 |
|
| Certificate | EAC certificate (RU) |
|
| Certificate | UKRSEPRO certificate (UA) |
|
| Image | VZC151, VZC161 without cable, high res |
|
| Image | VZC152, VZC162 without cable, high res |
|
| Image | VZC253, VZC263 without cable, high res |
|
| Image | VZD151, VZD161, high res |
|
| Image | VZD152, VZD162, high res |
|
| Image | VZD253, VZD263, high res |
|
| 2D Image | VZC152, VZC162 |
|
| 2D Image | VZC253, VZC263 |
|
| 2D Image | VZD152, VZD162 |
|
| 2D Image | VZD253, VZD263 |
|
Related materials
Related products
|
VZA, VZB | Series VZA, VZB is a range of compact diverting valves | |||
 |
VRG230 | Series VRG230 are 3-way valves suitable for midport change-over / diverting operation. | Data sheet | Installation instruction | |
 |
MBA130 | Series MBA130 are 3-way diverting valves with actuator | Data Sheet | Installation instruction | |
 |
VTD300 | The series VTD300 are thermic valves used for diverting applications. | Data Sheet | Installation instruction | |
 |
ARA600 2-point | Series ARA600 with 2-point (on/off) signal is suitable for diverting operations. | Data sheet | Installation instruction | Installation instruction |
 |
ZRS130 | The ESBE Series ZRS130 is a range of 3-way diverting motorized zone valve with spring return actuator for use in heating and cooling system. | |||
 |
ZRS230 | The ESBE Series ZRS230 is a range of 3-way diverting motorized zone valve with spring return actuator for use in heating and cooling system. The flow direction is AB to B without power. | Data Sheet | Installation instruction |
Applications
Heat pump with heating circuit and domestic hot water tank.
Applications
Applications
Heat pump with heating circuit and domestic hot water tank.
