Mixing valve

VRG330

  • Superb regulation for best high flow mixing or diverting performance.
  • Lowest internal leakage on the market (<0,05%).
  • Compact, flexible and easy to install.
  • Long lasting and high durability.
  • Perfect match between the valve and ESBE actuators.
Series VRG330 are valves suitable for high flow mixing or diverting operation. Basically is the valve function of series VRG330 the same as for VRG130 except the high-flow possibility. The valves are made of high-performing brass allowing use in heating and cooling installations. The VRG series is available in DN15-50 and comes with different types of connections to suit most pipe dimensions. The valve is perfectly combined with ESBE actuators and controllers.
Product range

VRG331, Internal thread

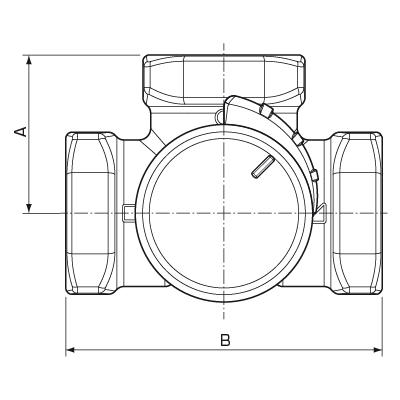

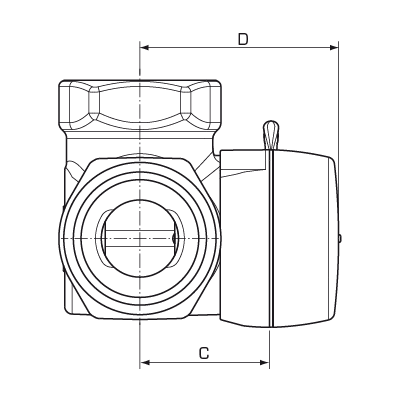

Art.no. Reference DN Kvs ■ - ▲ Kvs ■ - ● Connection A [mm] B [mm] C [mm] D [mm] Weight [kg] Note Replaces
11700100 VRG331 20 13 8 Rp ¾" 36 72 32 50 0,43
11700200 VRG331 25 17 10 Rp 1" 41 82 34 52 0,70
11700300 VRG331 32 32 20 Rp 1¼" 47 94 37 55 0,95
11701100 VRG331 40 45 30 Rp 1½" 53 106 44 62 1,65 11700400
11701300 VRG331 50 65 40 Rp 2" 60 120 46 64 2,28 11700500

VRG332, External thread

Art.no. Reference DN Kvs ■ - ▲ Kvs ■ - ● Connection A [mm] B [mm] C [mm] D [mm] Weight [kg] Note Replaces
11700600 VRG332 20 13 8 G 1" 36 72 32 50 0,43
11700700 VRG332 25 17 10 G 1¼" 41 82 34 52 0,70
11700800 VRG332 32 32 20 G 1½" 47 94 37 55 0,95
11701200 VRG332 40 45 30 G 2" 53 106 44 62 1,66 11700900
11701400 VRG332 50 65 40 G 2¼" 60 120 46 64 2,28 11701000

VRG338, Rotating nut

Art.no. Reference DN Kvs ■ - ▲ Kvs ■ - ● Connection A [mm] B [mm] C [mm] D [mm] Weight [kg]
11701500 VRG338 20 13 8 3x RN 1" 36 72 32 50 0,57
Installation support

Installation of VRG330

How to install ARA600 actuator on VRG valve

Installation examples

Flow through VRGxx0 valve

VRGxx0 valve flow

Characteristic graph, VRGxx0 valves

50% valve position in VRGxx0 valves

Operation

Operation
The flat-sided spindle top points towards the sleeve position.

Installation example

Installation example

Documents

Technical data

Technical data

Pressure class: PN10
Torque (at nominal pressure): DN20-32: < 3 Nm;
DN40-50: < 5 Nm
Leakrate in % of flow: <0,05
Working pressure: 1 MPa
max. Differential pressure drop, Mixing: 100 kPa
max. Differential pressure drop, Diverting: 200 kPa
Close off pressure: 200 kPa
Rangeability Kv/Kv min, A-AB: 100
Conformity:

PED 2014/68/EU, article 4.3

Media temperature, max. continuosly: +110 °C
Media temperature, max. temporarily: +130 °C
Media temperature, min.: -10 °C
Connections, Internal thread (Rp): EN 10226-1
Connections, External thread (G): ISO 228/1
Material, Valve body: Dezincification resistant brass, DZR
Material, Slide: Abrasion resistant brass
Material, Shaft and bushing: PPS composite
Material, O-rings: EPDM

Valve characteristics

Valve characteristics

Dimensioning

Dimensioning
Please see data sheet
