Solar kit
VMC300, VMC500
- Optimized energy usage.
- Anti-scald protection.
- Accuracy of regulation.
- Easy installation.
The series VMC300/VMC500 for dual source domestic hot water. The Solar Kit offers optimized energy usage, scald protection and comfort in a compact and efficient way. Using only thermostatic components (non-electrical) the unit is completely independent and provides very easy installation.
Product range

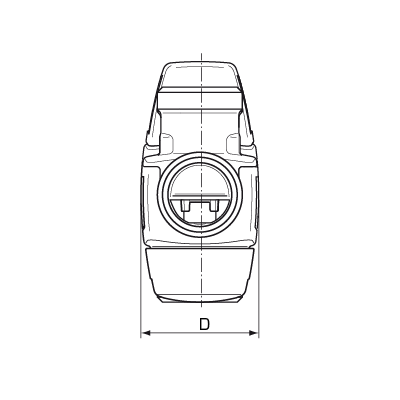

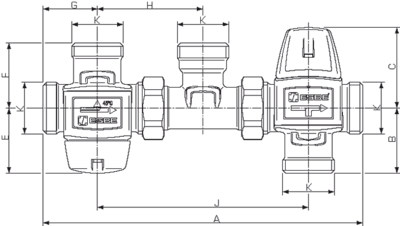

VMC322, External thread
| Art.no. | Reference | Change-over point [°C] | Kvs | Connection K | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | F [mm] | G [mm] | H [mm] | J [mm] | Weight [kg] |
| 31521000 | VMC322 | 45 | 1,5 | G 1" | 206 | 42 | 52 | 46 | 42 | 42 | 35 | 68 | 136 | 1,22 |
| 31521100 | VMC322 | 50 | 1,5 | G 1" | 206 | 42 | 52 | 46 | 42 | 42 | 35 | 68 | 136 | 1,22 |
| 31521200 | VMC322 | 60 | 1,5 | G 1" | 206 | 42 | 52 | 46 | 42 | 42 | 35 | 68 | 136 | 1,22 |

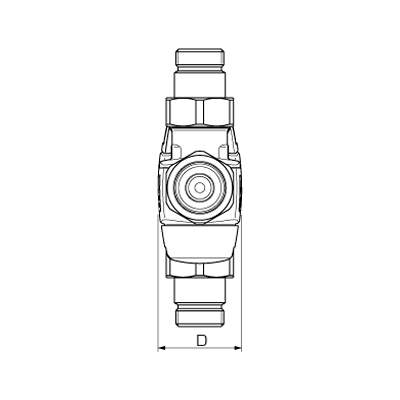

VMC322, with adapters
| Art.no. | Reference | Change-over point [°C] | Kvs | Connection K | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | F [mm] | G [mm] | H [mm] | J [mm] | Weight [kg] | Note |
| 31521300 | VMC322 | 45 | 1,4 | R ¾" | 276 | 77 | 52 | 46 | 42 | 77 | 70 | 68 | 136 | 1,86 | Two check valves for both hot and cold water are included. |
| 31521400 | VMC322 | 50 | 1,4 | R ¾" | 276 | 77 | 52 | 46 | 42 | 77 | 70 | 68 | 136 | 1,86 | Two check valves for both hot and cold water are included. |
VMC522, External thread
| Art.no. | Reference | Change-over point [°C] | Kvs | Connection K | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | F [mm] | G [mm] | H [mm] | J [mm] | Weight [kg] |
| 31523000 | VMC522 | 45 | 2,5 | G 1" | 220 | 62 | 60 | 56 | 42 | 42 | 35 | 68 | 143 | 1,50 |
Installation support
Installation examples
Documents
| Name | Download |
| Installation instruction VMC300, VMC500 |
|
Technical data
Technical data
| Pressure class: | PN 10 |
| Max. flow from collector: | VMC300: 0,7 l/s (42 l/min); VMC500: 1,0 l/s (60 l/min) |
| Changeover point, accuracy: | ± 1 °C |
| Diverting range shut off: | 45°C: ± 2°C; 50°C, 60°C: ± 3°C |
| Conformity: | PED 2014/68/EU, article 4.3 |
| Temperature on water from collector, max.: | +95 °C |
| Temperature on water from collector, min.: | 0 °C |
| Temperature from additional heat source, max.: | +95 °C |
| Temperature range, mixing valve - VMC300: | 35 - 60 °C |
| Temperature range, mixing valve - VMC500: | 45 - 65 °C |
| Temperature stability on outgoing water - VMC300*: | ± 2 °C |
| Temperature stability on outgoing water - VMC500**: | ± 4 °C |
| * Valid at unchanged hot/cold water pressure, minimum flow rate 4 l/min. Minimum temperature difference between hot water inlet and mixed water outlet 10°C. ** Valid at unchanged hot/cold water pressure, minimum flow rate 9 l/min. Minimum temperature difference between hot water inlet and mixed water outlet 10°C. | |
| Material, Valve housing and other metal parts with fluid contact: | Dezincification resistant brass, DZR |
| Connections, External thread (G): | ISO 228/1 |
| Connections, External thread (R): | EN 10226-1 |
Conformity
KTW/WRAS/ACS

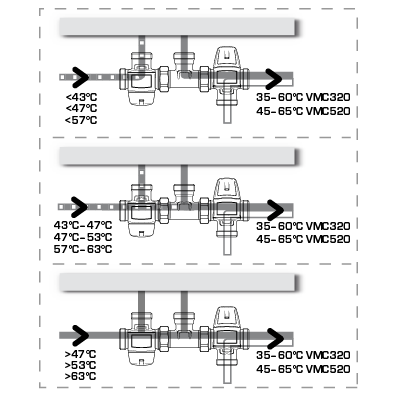

Flow pattern
Accessories and Spare Parts
Spare parts
| Art No. | Reference | Designation | Description | Note | Data sheet | Instruction manual | |
 |
37102000 | VTD911 | ESBE VTD911 Exchange kit, 45°C | Exchange kit VTD911, 45°C. | |
|
|
|
37102100 | VTD911 | ESBE VTD911 Exchange kit, 50°C | Exchange kit VTD911, 50°C. | |
|
|
|
37102200 | VTD911 | ESBE VTD911 Exchange kit, 60°C | Exchange kit VTD911, 60°C. | |
|
|
 |
37000400 | VTA932 | ESBE VTA932 Exchange kit VTA320, 35 - 60°C | Exchange kit VTA932, 35 - 60°C. | VTA320, VTR320 | |
|
 |
37120300 | VTS955 | ESBE VTS955 Exchange kit, series VTS550, 45 - 65°C | Exchange kit VTS955, series VTS550, 45 - 65°C. | VTS550 | |
|
 |
57000600 | VTC931 | ESBE VTC931 Thermostat, 42°C | Thermostat VTC931 42°C | |
|
Connection kit KTD200, KTD300
| Art No. | Reference | Designation | Description | Note | Data sheet | Instruction manual | |
 |
36552500 | KTD312 | Connection kit with external thread R 1" for use on externally threaded valves G 1¼". | Connection kit with external thread R 1" for use on externally threaded valves G 1¼". | Two check valves included. Suits series VTS522, VTS552, VTA331, VTA532, VTA362, VTA562, VTA322, VTA522, VTA352, VTA552, VTA372, VTA572, VMC312. | |
|
 |
36552200 | KTD212 | Connection kit with external thread R ¾" for use on externally threaded valves G 1". | Connection kit with external thread R ¾" for use on externally threaded valves G 1". | One check valves included. Suits series VTS522, VTS552, VTA331, VTA532, VTA362, VTA562, VTA322, VTA522, VTA352, VTA552, VTA372, VTA572, VMC312. | |
|
|
36552300 | KTD212 | Connection kit with external thread R 1" for use on externally threaded valves G 1¼". | Connection kit with external thread R 1" for use on externally threaded valves G 1¼". | One check valves included. Suits series VTS522, VTS552, VTA331, VTA532, VTA362, VTA562, VTA322, VTA522, VTA352, VTA552, VTA372, VTA572, VMC312. | |
|
|
36552400 | KTD312 | Connection kit with external thread R ¾" for use on externally threaded valves G 1". | Connection kit with external thread R ¾" for use on externally threaded valves G 1". | Two check valves included. Suits series VTS522, VTS552, VTA331, VTA532, VTA362, VTA562, VTA322, VTA522, VTA352, VTA552, VTA372, VTA572, VMC312. | |
|
Connection kit KCD300
| Art No. | Reference | Designation | Description | Note | Data sheet | Instruction manual | |
 |
36552900 | KCD313 | Connection kit with compression fittings CPF 22mm for use on externally threaded valves G1". | Connection kit with compression fittings CPF 22mm for use on externally threaded valves G1". | Two check valves included. Suits series VTS522, VTS552, VTA331, VTA532, VTA362, VTA562, VTA322, VTA522, VTA352, VTA552, VTA372, VTA572, VMC312. | |
|
Download area
Download area
| Type | Preview | Download |
| Data sheet | VMC300, VMC500 |
|
| Installation instruction | VMC300, VMC500 |
|
| Certificate | Declaration of Conformity VMC300 |
|
| Certificate | Declaration of Conformity VMC500 |
|
| Certificate | Building Product Declaration, VMC300/VMC500 |
|
| Certificate | KIWA-21-DW-10120, VMC300 |
|
| Certificate | KIWA-21-DW-10122, VMC300 |
|
| Certificate | KIWA-21-DW-10122, VMC500 |
|
| Certificate | EAC certificate (RU) |
|
| Approval | PZH-certificate (PL) |
|
| Image | VMC322, high res |
|
| Image | VMC322 with adapers, high res |
|
| Image | VMC522, high res |
|
| Image | VMC522 with adapters, high res |
|
| 2D Image | VMC322, VMC522 |
|
| 2D Image | VMC322, VMC522 with adapters |
|
Related materials
Related products
 |
VTS520 | The series VTS520 for domestic hot water distribution connected to solar heating systems. | Data Sheet | Installation instruction |
 |
VTA360 | The series VTA360 for domestic hot water distribution, anti-scalded point-of-use applications. | Data Sheet | Installation instruction |
 |
VTS550 | The series VTS550 for domestic hot water distribution connected to solar heating systems. | Data Sheet | Installation instruction |
 |
VTA330 | The series VTA330 for domestic hot water distribution, anti-scalded point-of-use applications. | Data Sheet | Installation instruction |
 |
VCA100 | ESBE Check valves series VCA100, check valves for internal use in pipes. | Data Sheet | |
 |
VTD300 | The series VTD300 are thermic valves used for diverting applications. | Data Sheet | Installation instruction |
 |
VMD300 | The series VMD300 with adjustable set temperature for dual source domestic hot water. | Data sheet | Installation instruction |
 |
VSB300 | ESBE Safety valves series VSB300 are used to secure solar heating systems against excess pressure. | ||
 |
VSB100 | ESBE Safety valves series VSB100 are used to secure domestic hot water systems against excess pressure. | Data Sheet | Installation instruction |
Applications
Thermosyphon system together with additional boiler.
Solid fuel system with additional boiler.
Thermosyphon system together with additional boiler.
Solar system with additional backup for domestic hot water system.
Applications
Applications
Thermosyphon system together with additional boiler.
Solid fuel system with additional boiler.
Thermosyphon system together with additional boiler.
Solar system with additional backup for domestic hot water system.
