Connection kit

KTE100

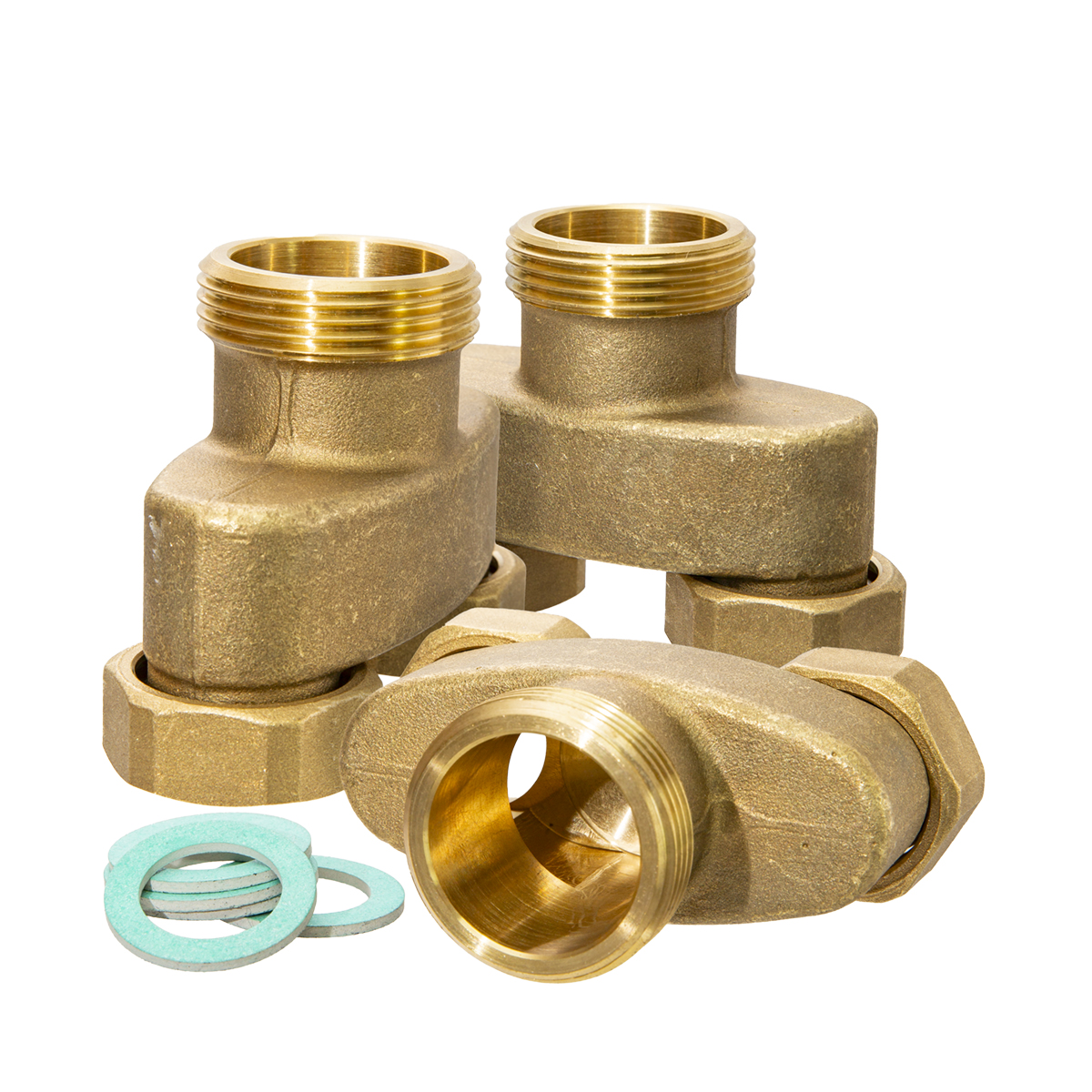

Connection kit with external thread on system side and rotating nuts on valve side for easy parallel connection of 2 identical thermostatic mixing valves to suit a big fresh water system.

Product range

KTE112

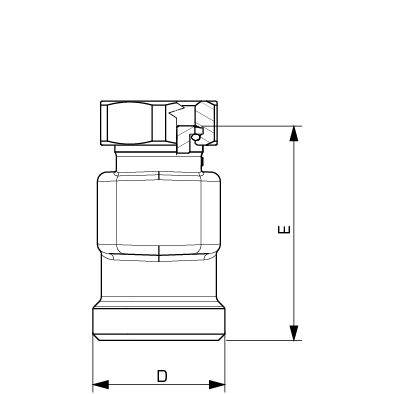

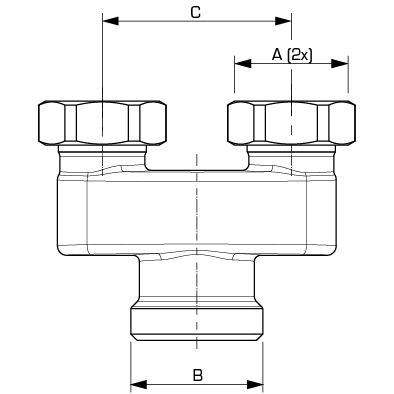

Art.no.	Reference	Connection A	Connection B	C [mm]	D [mm]	E [mm]	Weight [kg]
36554700	KTE112	RN 1"	G 1¼"	60	42	68	1,25

Technical data

Pressure class:	PN 10
Media temperature, max.:	+120 °C
Media temperature, min.:	-20 °C
Connections, External thread (G):	ISO 228/1
Connections, Internal thread (G):	ISO 228/1
Material, Nut:	Brass CW 614N
Material, Connection piece:	Dezincification resistant brass, DZR*
	*Suitable for drinking water applications
Material, Gasket:	Unitec 300
