Controller

CRC120

  • Weather compensating controller
  • Set the perfect heat curve according to your need
  • For valves up to DN150
  • Adjustable operating range (30-180°)
Series CRC120 is an outdoor sensor based controller suited for larger systems and valves such as 3F. The controller is designed to provide a high level of comfort thanks to the possibility to set a perfect characteristic heating curve and at the same time provide energy savings for the house owner. The regulation is based on outdoor sensor feedback and an adjustable characteristic heating curve. An offset / parallel adjustment of the characteristic heating curve may be activated by an external signal for example night settings. For applications with well insulated building and quick heating systems such as radiator circuit can a temperature filter be activated to delay an outdoor temperature change to avoid an imbalance between estimated and actual heating demand.
Product range

CRC12x

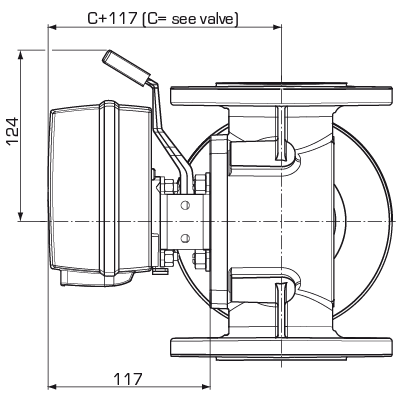

Installation dimensions for Actuator Series CRx120 with ESBE series MG, G, F, T/TM, H/HG and BIV mixing valves
Installation dimensions for Control box
Art.no. Reference Voltage [V AC] Torque [Nm] Weight [kg] Note
12842100 CRC121 230 15 1,8
12842500 CRC125 230 15 1,8 Transformer with UK plug
Installation support

How to mount ESBE Controller on ESBE valve

Installation example

Installation example
Technical data

Technical data

Sensors: Temperature sensor type NTC
Enclosure rating: Actuator unit: IP54;
Control box: IP54
Protection class: II
Power supply: 230 ± 10% V AC, 50 Hz
Power consumption: 10 VA
Torque: 15 Nm
ERP temperature controls class: III
Energy efficiency contribution: 1,5 %
Running time at max. speed: 120 s
Supplied parts: • Control unit
• Actuator
• Adaptor kit for ESBE valves MG, G, F, BIV, H, HG
• 230V AC transformer with European or United Kingdom plug
Ambient temperature, max.: +55 °C
Ambient temperature, min.: -5 °C
Temperature range - Flow pipe sensor: +5 to +95 °C
Temperature range - Outdoor sensor: -50 to +70 °C
