Controller

CRA120

  • Adjustable operating range.
  • For valves up to DN150.
  • Superb regulation.
Series CRA120 is a constant flow temperature controller suited for larger systems and valves such as 3F. The product is perfect for applications where a constant water temperature is required. Temperature settings is done by an easy-to-use push buttons and display interface. The controller is designed for operating rotary valves DN 15-150 and has an operating range of 30-180°. The series can easily be manually operated by a disconnection button and lever.
Product range

CRA12x

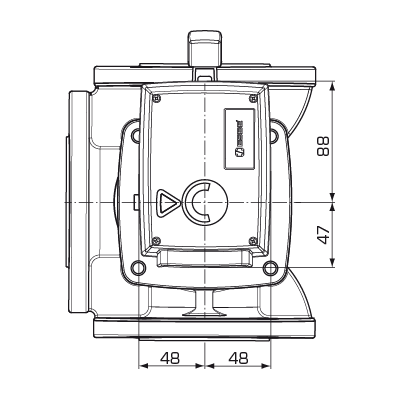

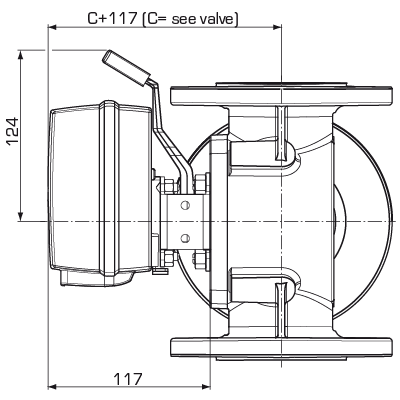

Installation dimensions for Actuator Series CRx120 with ESBE series MG, G, F, T/TM, H/HG and BIV mixing valves

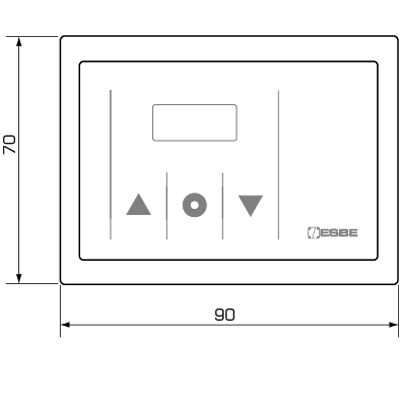

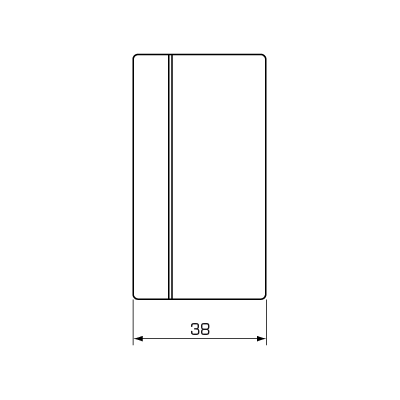

Installation dimensions for Control box
Art.no. Reference Voltage [V AC] Temperature range [°C] Torque [Nm] Note Replaces
12742100 CRA121 230 5-95 15 12700500
12742500 CRA125 230 5-95 15 Transformer with UK plug
12742200 CRA122 24 5-95 15 12700100
Installation support

How to mount ESBE Controller on ESBE valve

Installation examples

Installation examples
1
2

Documents

Technical data

Technical data

Enclosure rating: Actuator unit: IP54;
Control box: IP54
Protection class: II
Power supply: 24 ± 10% V AC, 50/60 Hz;
230 ± 10% V AC, 50 Hz
Power consumption: 24VAC: 3 VA;
230VAC: 10 VA
Torque: 15 Nm
Running time at max. speed: 120 s
Weight: 0,9 kg
Ambient temperature, max.: +55 °C
Ambient temperature, min.: -5 °C
Temperature range - Flow pipe sensor: +5 to +95 °C

Conformity

Conformity
LVD 2014/35/EU
EMC 2014/30/EU
RoHS 2011/65/EU

Wiring

Please see Installation instruction
Accessories and Spare Parts

Adaptor Kits

Art No. Reference Designation Description Note Instruction manual
16053300 16053300 VRG801 ESBE VRG801 Adaptor kit ESBE valves series VRG, VRH, VRB, VRS, VRP. ESBE VRG801 Adaptor kit ESBE valves series VRG, VRH, VRB, VRS, VRP. Series 90, CRA120, CRC120. Order separately. download
16051300 16051300 900 ESBE 900 Adaptor kit ESBE valves series MG, G, F, BIV, T, TM, H, HG. ESBE 900 Adaptor kit ESBE valves series MG, G, F, BIV, T, TM, H, HG. Series 90, CRA120, CRC120. Comes with the actuator or Controller. download
16053900 16053900 900C ESBE 900C Adaptor kit Honeywell Centra ZR, DR, DRG, DRU (DN15 - DN50). ESBE 900C Adaptor kit Honeywell Centra ZR, DR, DRG, DRU (DN15 - DN50). Series 90, CRA120, CRC120, 90C*. Order separately. *The adaptor kit comes with a hand lever and for the controller series 90C this must be removed. It is not required for assembly. download
16051700 16051700 900CK ESBE 900CK Adaptor kit Honeywell Centra Kompakt DRK/ZRK. ESBE 900CK Adaptor kit Honeywell Centra Kompakt DRK/ZRK. Series 90, CRA120, CRC120, 90C*. Order separately. *The adaptor kit comes with a hand lever and for the controller series 90C this must be removed. It is not required for assembly. download
16053600 16053600 900F ESBE 900F Adaptor kit Meibes / Oventrop / Watts / BRV. ESBE 900F Adaptor kit Meibes / Oventrop / Watts / BRV. Series 90, CRA120, CRC120, 90C*. Order separately. *The adaptor kit comes with a hand lever and for the controller series 90C this must be removed. It is not required for assembly. download
16052600 16052600 900L ESBE 900L Adaptor kit Schneider Electric TRV / TAC-TRV valves. ESBE 900L Adaptor kit Schneider Electric TRV / TAC-TRV valves. Series 90, CRA120, CRC120, 90C*. Order separately. *The adaptor kit comes with a hand lever and for the controller series 90C this must be removed. It is not required for assembly. download
16052500 16052500 900K ESBE 900K Adaptor kit Siemens VBG31, VBI31, VBF21, VCI31. ESBE 900K Adaptor kit Siemens VBG31, VBI31, VBF21, VCI31. Series 90, CRA120, CRC120, 90C*. Order separately. *The adaptor kit comes with a hand lever and for the controller series 90C this must be removed. It is not required for assembly. download
16051400 16051400 900A ESBE 900A Adaptor kit TA VTR valves. ESBE 900A Adaptor kit TA-VTR valves. Series 90, CRA120, CRC120, 90C*. Order separately. *The adaptor kit comes with a hand lever and for the controller series 90C this must be removed. It is not required for assembly. download
16051500 16051500 900B ESBE 900B Adaptor kit Viesmann valves DN 20-25 ESBE 900B Adaptor kit Viesmann valves DN 20-25 Series 90, CRA120, CRC120, 90C*. Order separately. *The adaptor kit comes with a hand lever and for the controller series 90C this must be removed. It is not required for assembly. download

Spare parts

Art No. Reference Designation Description Note Instruction manual
17053300 17053300 CRA912 ESBE CRA912 Voltage adaptor, 230V — 24V Voltage adaptor CRA912, 230V — 24V. download

Options

Art No. Reference Designation Description Note Instruction manual
17053100 17053100 CRA911 ESBE CRA911 Flow pipe sensor, 5m cable. ESBE CRA911 Flow pipe sensor, 5m cable. download
Download area

Download area

Type Preview Download
Data sheet CRA120 download
Installation instruction CRA120 download
Certificate Declaration of Conformity CRA120 download
Certificate Building Product Declaration BPD3 download
Certificate EAC certificate (RU) download
Image CRA120, high res download
2D Image CRA120 download
3D drawing (stp file) CRA120 Controller download
3D drawing (stp file) 90 Actuator download
