Control valve PN6

VLF100

  • Superb regulation for best mixing and flow regulating performance up to 6 bar (PN6).
  • Real low internal leakrate and 100% tested product.
  • Long lasting and high durability.
  • Perfect match between the valve and ESBE actuators.

Series VLF are 2-way and 3-way control valves with flange connection PN6, suitable for mixing and flow regulation up to 6 bar. The valves are made of high-performing nodular iron allowing use in heating and cooling installations. The VLF series is available in 2-way DN20-DN50 ; 3-way DN20-DN50 and comes with a PN6 flange to suit PN6 flange pipe connections. The valve is perfectly combined with ESBE actuators and controllers.

Product range

VLF125, 2-way control valve

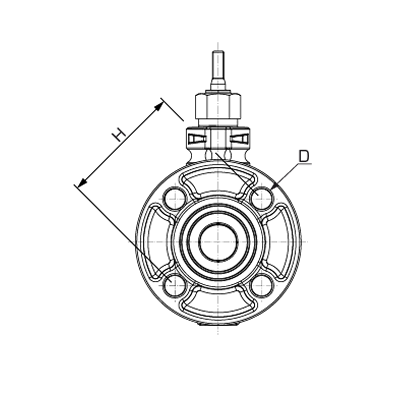

Art.no. Reference DN Kvs A [mm] B [mm] C [mm] D [mm] E [mm] F [mm] G [mm] H [mm] Rangeability Kv/Kv min Weight [kg]
21000400 VLF125 20 6,3 150 44 126 Ø11 (4x) 20 41 90 65 >50 2,4
21000500 VLF125 25 10 160 44 131 Ø11 (4x) 20 46 100 75 >50 2,9
21000600 VLF125 32 16 180 58 144 Ø14 (4x) 20 60 120 90 >50 4,2
21000700 VLF125 40 25 200 60 146 Ø14 (4x) 20 61 130 100 >50 5,4
21000800 VLF125 50 38 230 74 161 Ø14 (4x) 20 76 140 110 >50 6,7

VLF135, 3-way control valve

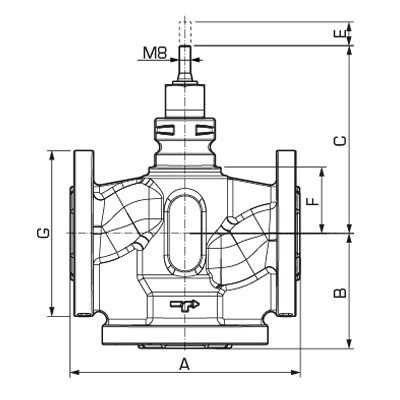

Art.no. Reference DN Kvs A [mm] B [mm] C [mm] D [mm] E [mm] F [mm] G [mm] H [mm] Rangeability Kv/Kv min Weight [kg]
21001200 VLF135 20 6,3 150 75 126 Ø11 (4x) 20 41 90 65 >50 2,9
21001300 VLF135 25 10 160 80 131 Ø11 (4x) 20 46 100 75 >50 3,4
21001400 VLF135 32 16 180 90 144 Ø14 (4x) 20 60 120 90 >50 6,0
21001500 VLF135 40 25 200 100 146 Ø14 (4x) 20 61 130 100 >50 6,5
21001600 VLF135 50 38 230 115 161 Ø14 (4x) 20 76 140 110 >50 8,2
Technical data

Technical data

Type: 2- and 3-way plug valve
Pressure class: PN 6
Flow characteristic A-AB: EQM
Flow characteristic B-AB: Complementary
Stroke: 20 mm
Rangeability Kv/Kv min: see table
Leakrate A - AB: Tight sealing
Leakrate B - AB: Tight sealing
ΔP: see data sheet
Media temperature, max.: +120 °C
Media temperature, min.: -20 °C
Connections: Flange, ISO 7005-2
Conformity:

PED 2014/68/EU, article 4.3

Material, Body: Nodular iron, EN-JS 1030
Material, Stem: Stainless steel, SS 2346
Material, Plug: Brass, CW 602N
Material, Seat: Nodular iron, EN-JS 1030
Material, Blind plug: Brass, CW 602N
Material, Seat seal: EPDM
Material, Packing box seal: PTFE/EPDM

Dimensioning

 Dimensioning
Please see data sheet
