Anti-freeze valve
VTN100
- Media temperatur range: 0-90°C
- Opening temperature: 3°C
- Max discharge flow: 2 l/min @3 bar dP
- Exact temperatur regulation
- Robust
- Maintenance free
The ESBE series VTN100 is a range of safety valves for mono bloc heat pumps to ensure that in case of a power outage during cold weather, the heatpump and plate heat exchanger should not freeze and break. When the media temperature drops below 3°C, the valve starts evacuating water allowing warmer water to reach the valve, as it closes again at a media temperature of 4°C.
Product range
VTN102, External thread
| Art.no. | Reference | DN | Connection D | A [mm] | B [mm] | C [mm] | Weight [kg] |

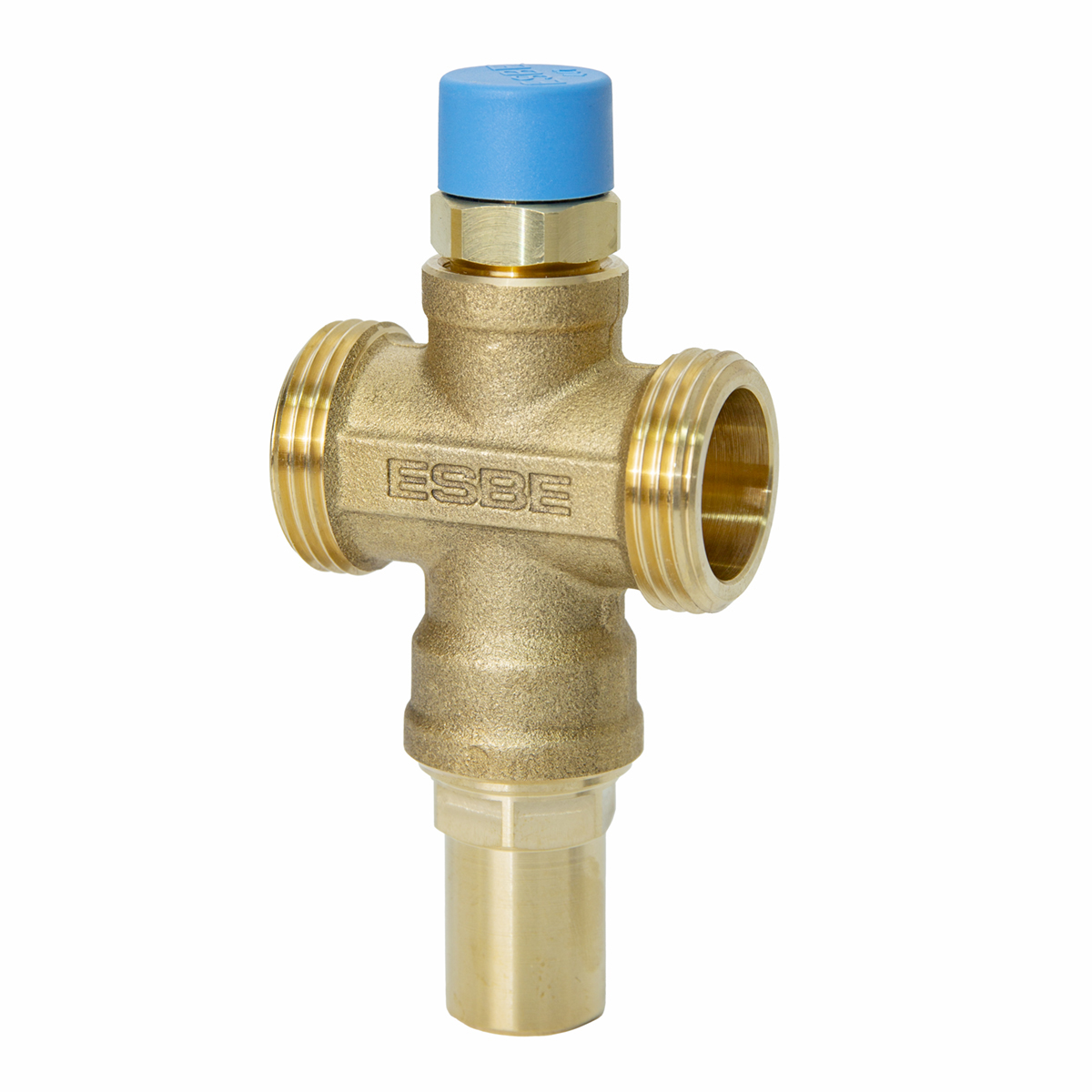

| 35100100 | VTN102 | 25 | G 1" | 58 | 123 | 73 | 0,35 |

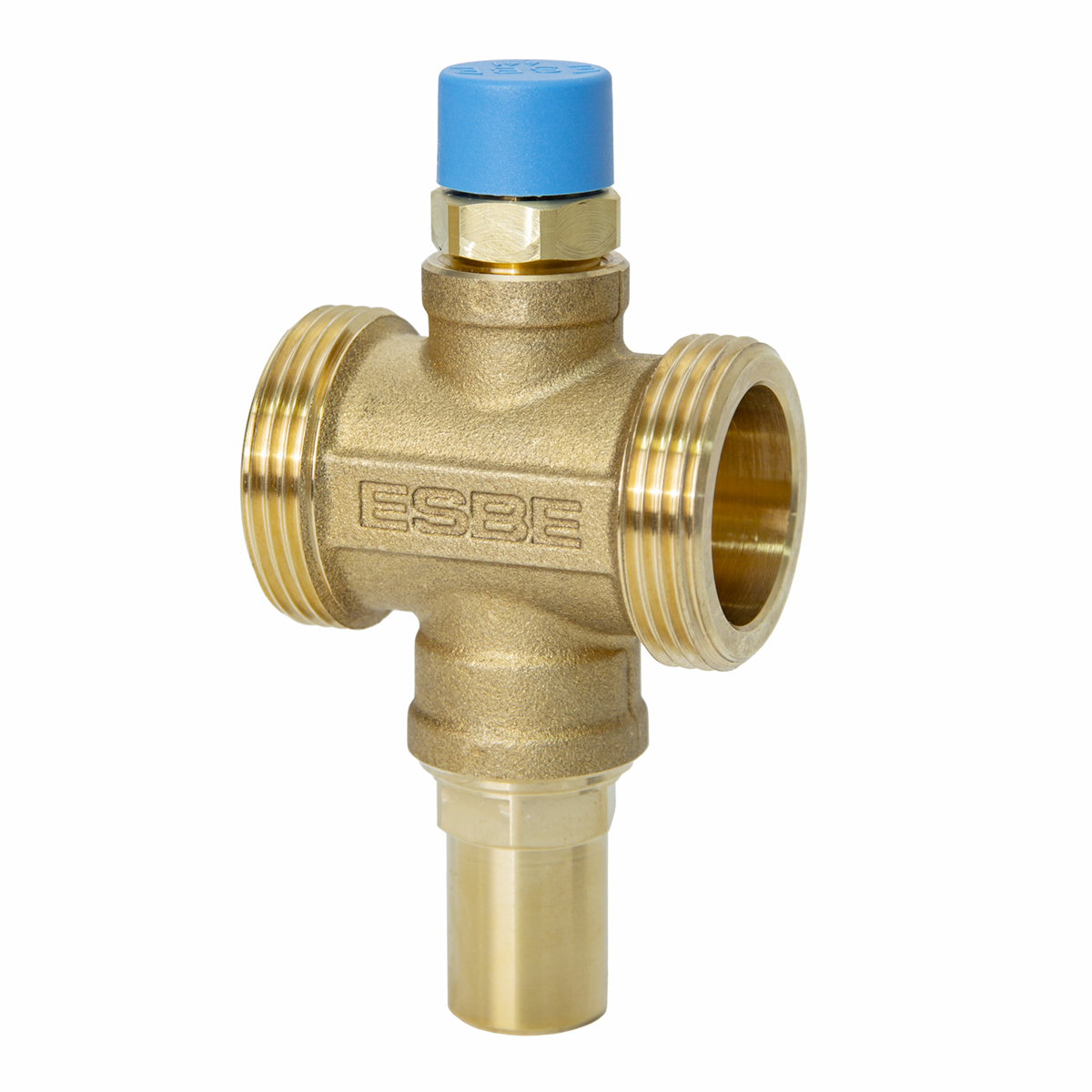

| 35100200 | VTN102 | 32 | G 1¼" | 62 | 123 | 70 | 0,42 |
Installation support

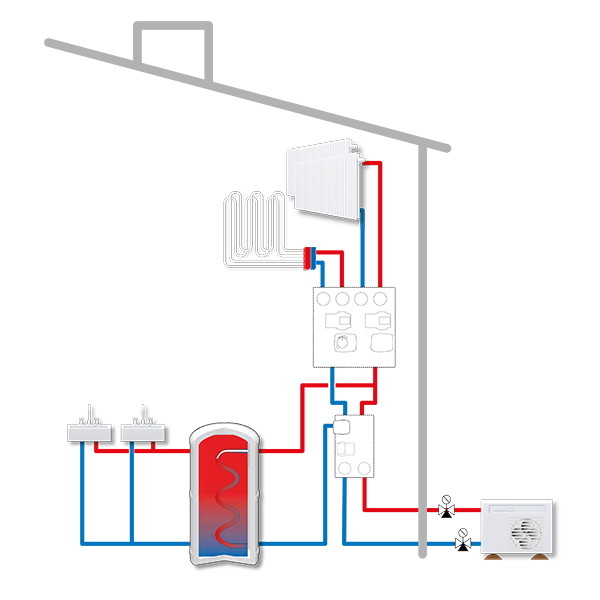

Installation examples
Documents
| Name | Download |
| Installation instruction VTN100 |
|
Technical data
Technical data
| Pressure class: | PN 10 |
| max. Working pressure: | 10 bar |
| Connections: | External thread (G), ISO 228/1 B |
| Max. discharge flow rate: | 2 l/min @ 1°C and 3 bar (Kvs 0,07 m³/h @ 1°C) |
| Media, Heating water: | in accordance with VDI2035 |
| Working temperature range: | 0°C to 90°C |
| Ambient temperature range: | -30°C to 60°C |
| Medium temperature - Opening: | 3°C ±1°C |
| Medium temperature - Closing: | 4°C ±1°C |
| Material - Valve body: | Brass |
| Material - O-ring: | EPDM |
| Material - Spring: | Stainless steel |
Conformity
Download area
Download area
| Type | Preview | Download |
| Data sheet | VTNx00 |
|
| Installation instruction | VTN100 |
|
| Certificate | Building Product Declaration BPD3, VTNx00 |
|
| Image | VTN102 DN25, high res |
|
| Image | VTN102 DN32, high res |
|

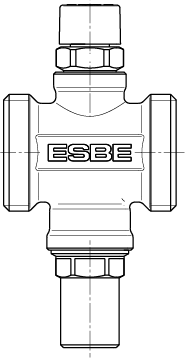

| 2D Image | VTN100 |
|
| 3D drawing (stp file) | VTN102, DN25 |
|
| 3D drawing (stp file) | VTN102, DN32 |
|
